Understanding Rapid Prototyping for use with plastic injection molds

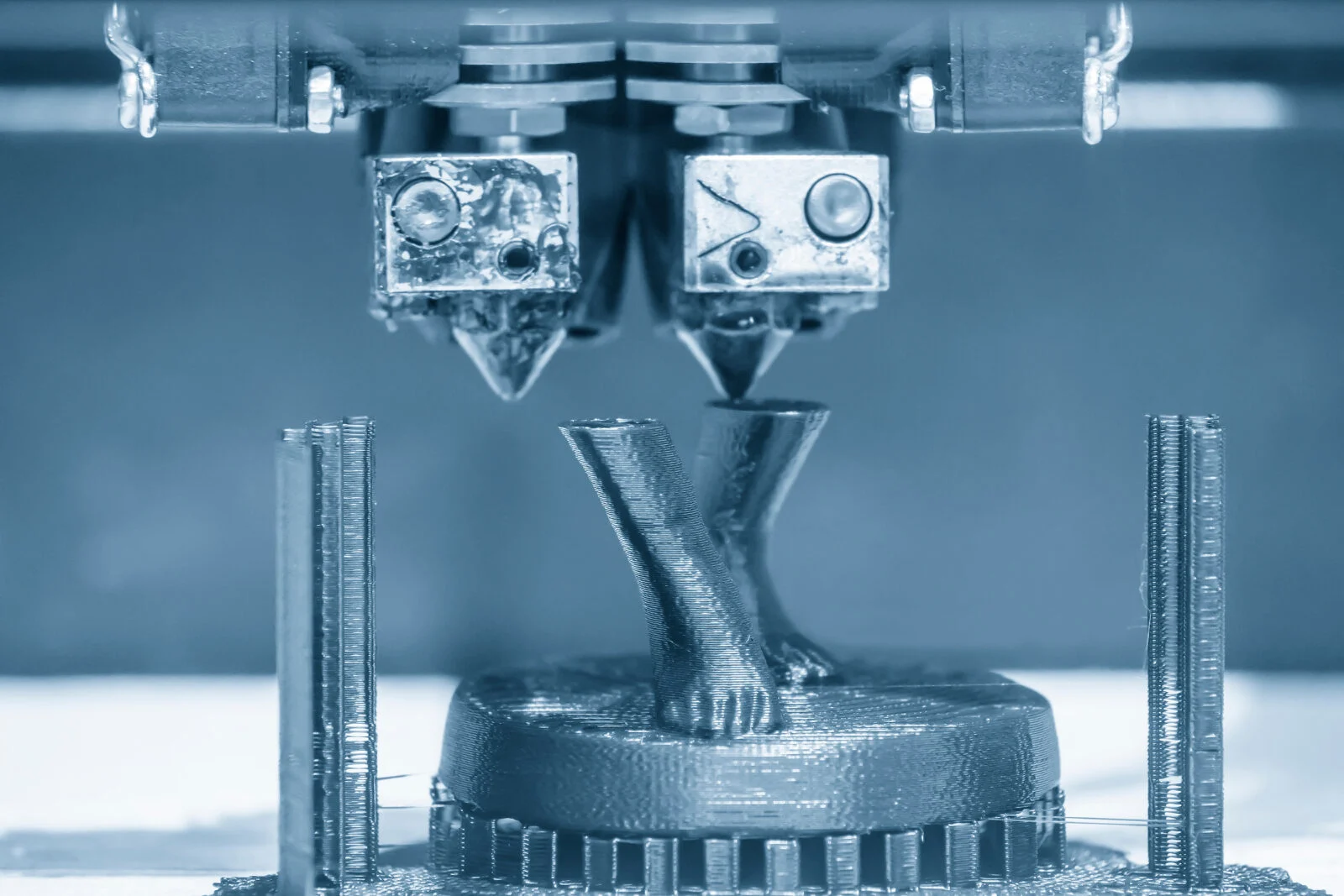

Rapid prototyping is a method in product development that leverages advanced manufacturing technologies to swiftly produce multiple iterations of a component for testing and evaluation. Essentially, it is a process designed to create parts as quickly as possible for hands-on reviews. Among the various technologies used for rapid prototyping, 3D printing is often the preferred choice due to its affordability and quick turnaround time. Typically, the cost for a 3D printed prototype ranges varies depending on the part as well as delivery times can vary based on complexity and instructions. Other popular rapid prototyping methods include CNC machining, sheet metal fabrication, and rapid injection molding.
The core principles of rapid prototyping are speed and affordability. These principles enable the production of multiple designs of a prototype simultaneously or allow for a single prototype to be revised and recreated quickly. This rapid iteration process provides engineers with critical information that aids in making informed design decisions before transitioning to higher fidelity models for functional testing and eventual production.
The use of rapid prototyping services allows for the testing of a wide range of designs and materials. By removing the usual financial and time constraints, it mitigates the risks associated with advancing a project without sufficient information. This flexibility and efficiency make rapid prototyping an invaluable tool in the product development process.
How Rapid Prototyping Works with Rapid Plastic Injection Molding
Rapid prototyping with rapid plastic injection molding is a streamlined process that combines the speed and flexibility of rapid prototyping with the precision and reliability of injection molding. Here’s a step-by-step overview of how this process works:
- Design Phase:
- The process begins with the creation of a detailed 3D model of the component using CAD (Computer-Aided Design) software. This digital model serves as the blueprint for the prototype.
- Mold Creation:
- Once the design is finalized, a mold is created based on the 3D model. In rapid injection molding, the molds are typically made from softer materials like aluminum or high-grade plastics, which can be produced more quickly and cost-effectively than traditional steel molds. Advanced CNC machining or 3D printing techniques are often used to fabricate these molds with high precision.
- Injection Molding:
- With the mold ready, the plastic injection molding process begins. Plastic pellets are heated until they become molten and then injected into the mold cavity under high pressure. The mold is designed to rapidly cool the molten plastic, allowing it to solidify and take the shape of the cavity.
- Prototype Ejection:
- After the plastic has solidified, the mold opens, and the prototype is ejected. This process can be repeated multiple times to produce several prototypes quickly, facilitating iterative testing and refinement.
- Testing and Evaluation:
- The prototypes produced through rapid plastic injection molding are then subjected to various tests to evaluate their functionality, durability, and overall performance. This step is crucial for identifying any design flaws or areas for improvement.
- Iteration:
- Based on the test results, the design may be revised, and new molds can be created if necessary. The rapid nature of the mold creation and injection molding processes allows for quick turnaround times, enabling multiple iterations in a short period.
- Finalization:
- Once the prototypes meet all the desired specifications and pass the required tests, the design is finalized. The final design can then be used for mass production, often with more durable steel molds for long-term use.
Advantages of Rapid Plastic Injection Molding in Prototyping:
- Speed: The process significantly reduces the time required to produce prototypes, allowing for faster iterations and quicker time-to-market.
- Cost-Effectiveness: Using softer materials for molds reduces the initial cost of mold creation, making it a more affordable option for early-stage prototyping.
- Accuracy and Precision: Injection molding provides high precision and repeatability, ensuring that each prototype is consistent and meets the exact design specifications.
- Material Versatility: This method allows for testing with a wide range of plastic materials, enabling the selection of the best material for the final product.
Rapid plastic injection molding is a powerful tool in the rapid prototyping toolkit, combining the speed and flexibility of prototyping with the accuracy and material options of traditional injection molding. This synergy accelerates the product development cycle and helps bring innovative products to market faster and more efficiently.
Have more questions? Let Jet Mold Product answer any rapid prototyping and plastic injection molding questions. We are here to help! Click or call us today.
